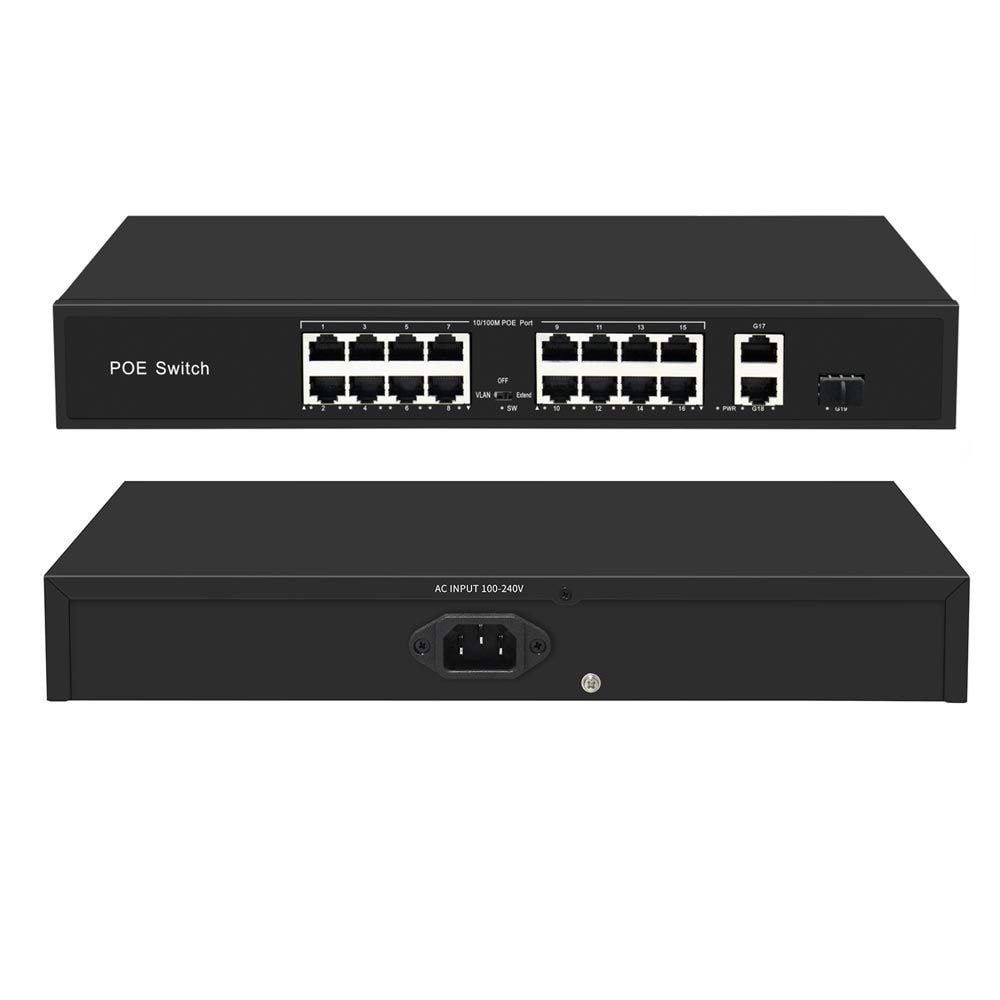

OPAX-1619 16 Port 10/100M POE Switch +2 Port Gigabit Uplink +1 Gigabit SFP Port 300W Rack Mount

(0 Musteri Degerlendirmeleri)

Stokta Var

Fiyatları Görmek İçin Üye Olunuz!

Adet:

(10 Adet Mevcut)

Teslimat ve İade Politikasi:

Ürün tarif edildiği gibi değilse iade kabul edilir, alıcı iade nakliye ücreti öder; veya ürünü saklayın ve satıcı ile geri ödeme kabul edin. Detaylı İncele

Paylaş:

OPAX-1619 16 Ports10/100M POE Switch +2 Port Gigabit Uplink +1 Gigabit SFP Port 300W Rack Mount

16 Port 10 / 100M Ethernet POE Switch for wifi AP IP Camera

OEM Factory 16 Port 10 / 100M Ethernet POE Switch for wifi AP IP Camera oem ethernet poe switch oem factory poe switch poe 10/100 ethernet switch

Product Name

19-Ports10/100M PoE Switch

Model

OPAX-1619

Connector Type

16*10/100M PoE Ports + 2*Gigabit Ethernet Uplink Ports +1*Gigabit SFP Uplink Port

Network Protocols

IEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
IEEE802.3z

PoE Parameters

PoE Standard: IEEE802.3af /IEEE802.3at

Max each port: 15.4W (IEEE 802.3af)
Max each port:30W (IEEE 802.3at)

PoE compatibility: IEEE 802.3af/at adaptive

PoE port output: DC48-55V

Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)

Network Media

10BASE-T: Cat 6 UTP(≤250 meter)
100BASE-TX: Cat5 or more UTP (≤100 meter)
1000BASE-TX: Cat5 or more UTP (≤100 meter)

Optical

MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km
Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km

PerformanceSpecification

Bandwidth: 9.2Gbps

MAC: 2K

Packet Buffer Memory: 1M

Packet Forwarding Rate: 6.8Mpps

Power Supply

Power input: AC100-240V 50/60Hz, Output: 52V5.76A, Power Budget: 300W,200W

LED Indicator

PWR	Powersupplyindicator (Red)	Lighting:Powered Un-Light:No Power
SW	DIP indicator (Green)	OFF: Normal Vlan: Lighting Extend: Slow flash
1-19	RJ-45 ACT indicator (Green)	Lighting:Connecting Flashing:Data Transmit Un-Light:Disconnect

Working Environment

Operating Temperature: -20℃ ~ 50℃;
Storage Temperature: -40℃ ~ 85℃;
Operating Humidity: Max 90%, non-condensing
Storage Humidity: Max 95%, non-condensing
Working Height: Max to 10,000 feet (3,000 meters)
Storage Height: Max to 10,000 feet (3,000 meters)

Physical Parameter

Product Dimension (L*W*H): 320mm*210mm*46mm
Package Dimension (L*W*H): 370mm*275mm*85mm
N.W: 1.8KG
G.W: 2.3KG

Package Contents

1.Ethernet Switch:1 unit
2.User Guide:1 unit
3.Warranty Card:1 unit
4.Power Cord:1 unit
5.1U Rack Mount: 1 pair

MTBF

100,000 hours

Certification

CE ,RoHS, FCC, CCC

Warranty

2 years

16 Port 10 / 100M Ethernet POE Switch for wifi AP IP Camera
