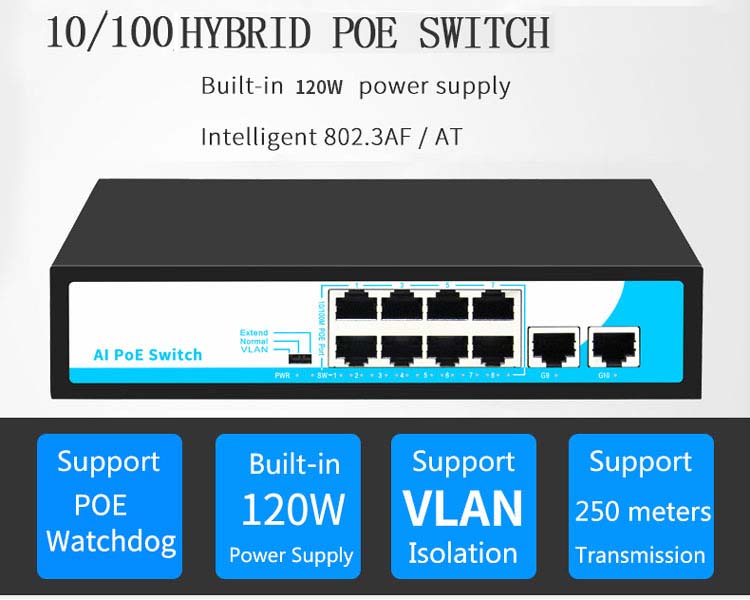

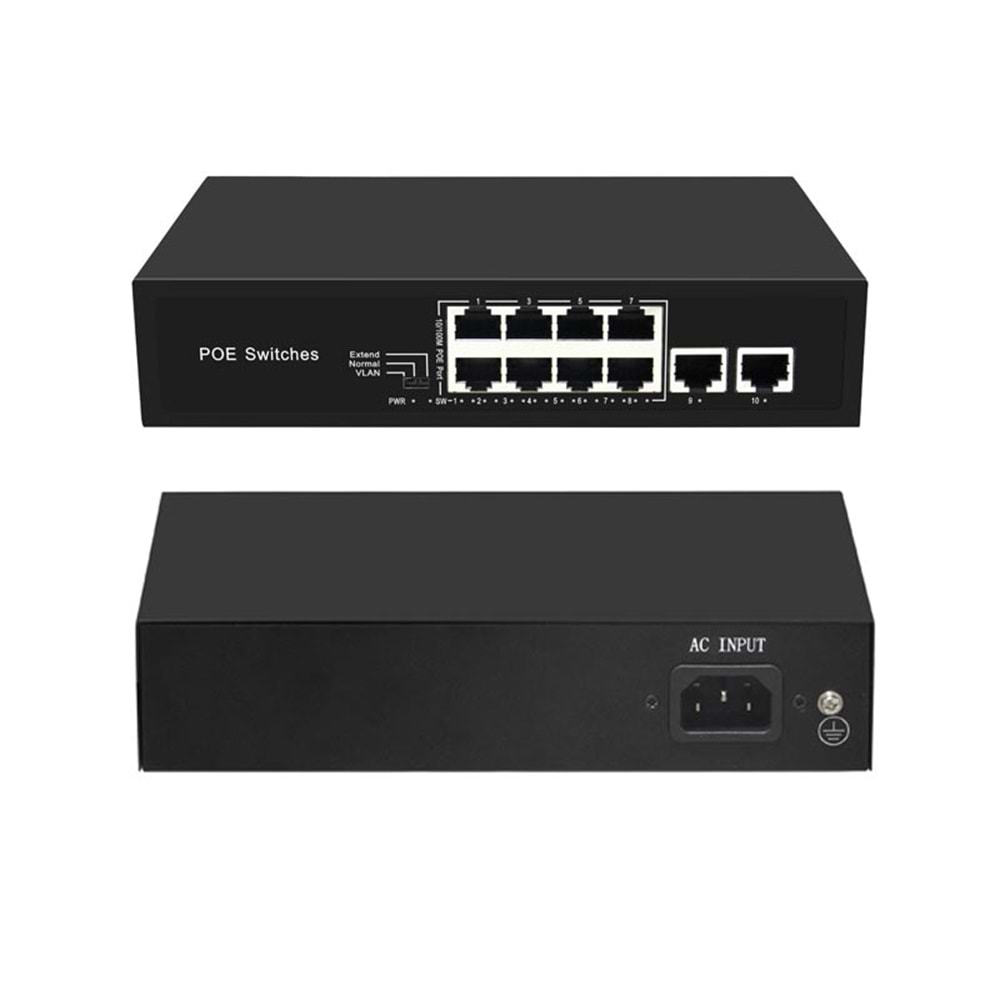

OPAX-0810 8 Ports10/100M POE Switch +2 Port Gigabit Uplink Port 120W

Fast Ethernet 100M 8 Port POE Network Switch 48V with 2 Gigabit Uplink RJ45 Ports poe switch 48v network switch 8 port port poe switch

100M 8 Port POE Network Switch 48V with 2 Gigabit Uplink RJ45 Ports

Product Name	10-Ports PoE Switch
Model	OPAX-0810
Connector Type	8 Port 10/100M PoE + 2 Port 10/100/1000M Ethernet Uplink
Network Protocols	IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab
PoE Parameters	PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w) PoE compatibility: IEEE 802.3af/at adaptive PoE port output: DC52V Power Pin : 1/2(+) ; 3/6 (-)
DIP	VLAN: Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on.
	Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; The port AI mode is closed.
	Extend: Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on.
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 10BASE-T: Cat 6 UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)
Power Supply	Power input: AC100-240V 50/60Hz, Output: 52V2.3A, Power Budget: 120W
Performance Specification	Bandwidth: 5.6Gbps
	MAC Address: 2K
	Packet Buffer Memory: 768K
	Packet Forwarding Rate: 0.1488M pps/each port
	Forwarding Mode: Store-And-Forward
Working Environment	Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 85℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters)
Physical Parameter	Product Dimension (LWH): 200mm120mm45mm Package Dimension (LWH): 245mm190mm60mm N.W: 0.64KG G.W: 0.9KG
Package Contents	1. Ethernet Switch:1 unit 2. User Guide:1 unit 3. Warranty Card:1 unit 4. Power Cord:1 unit 5. Wall Mount: 1 pair 6. 1U Rack Mount: 1 pair ( Optional )
Certification	CE ,RoHS, FCC, CCC
MTBF	100,000 hours
Warranty	2 years warranty
