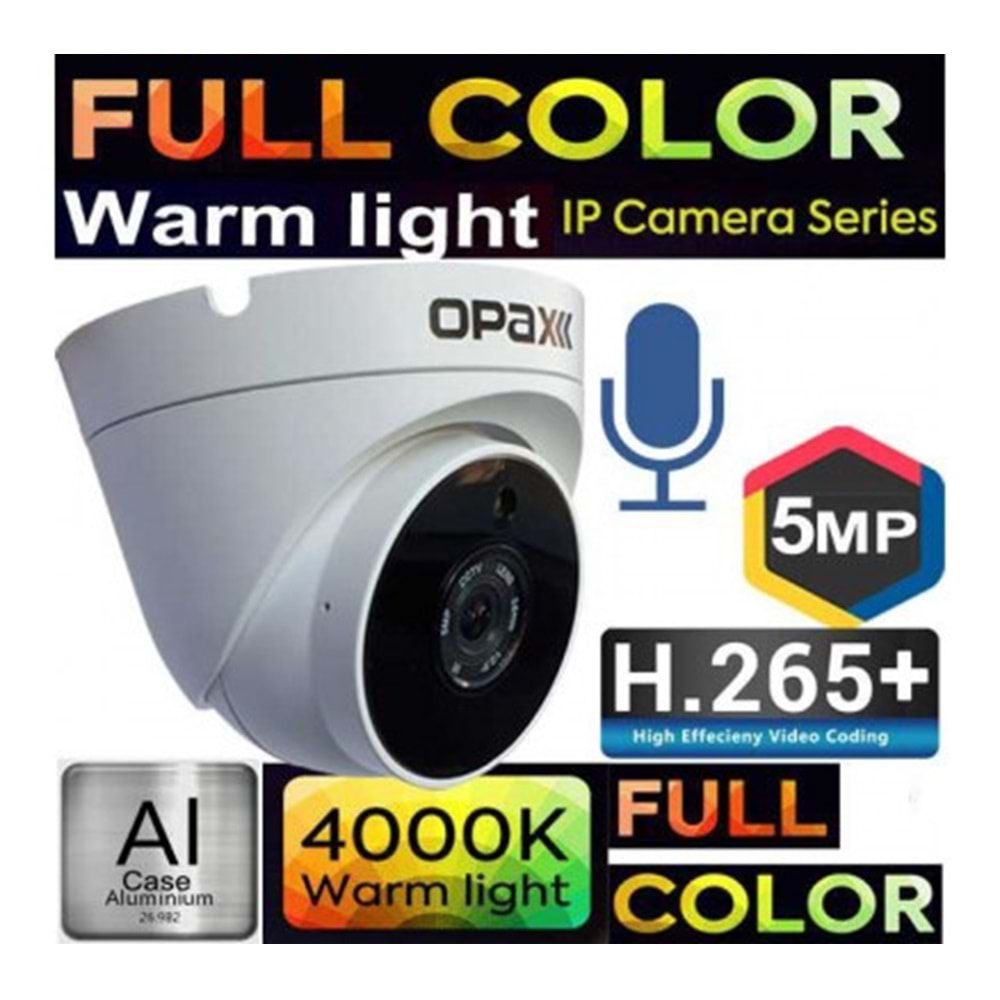

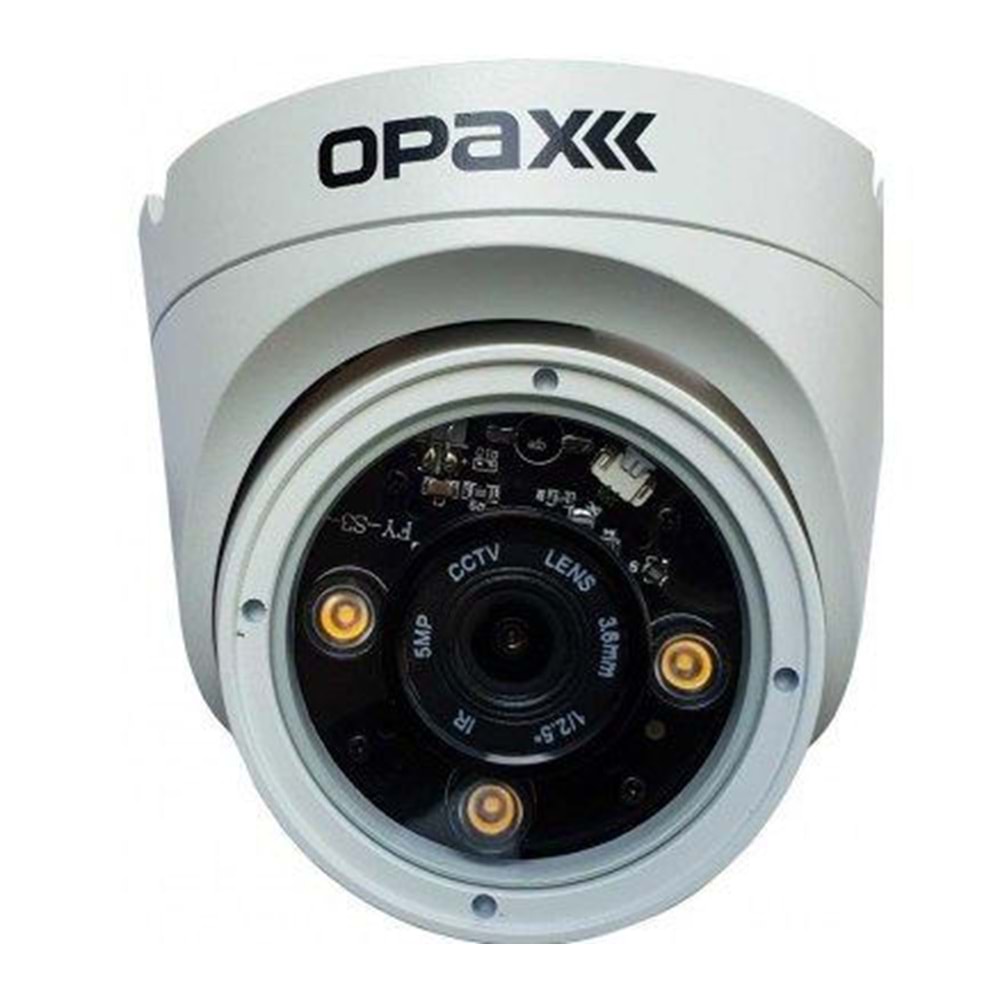

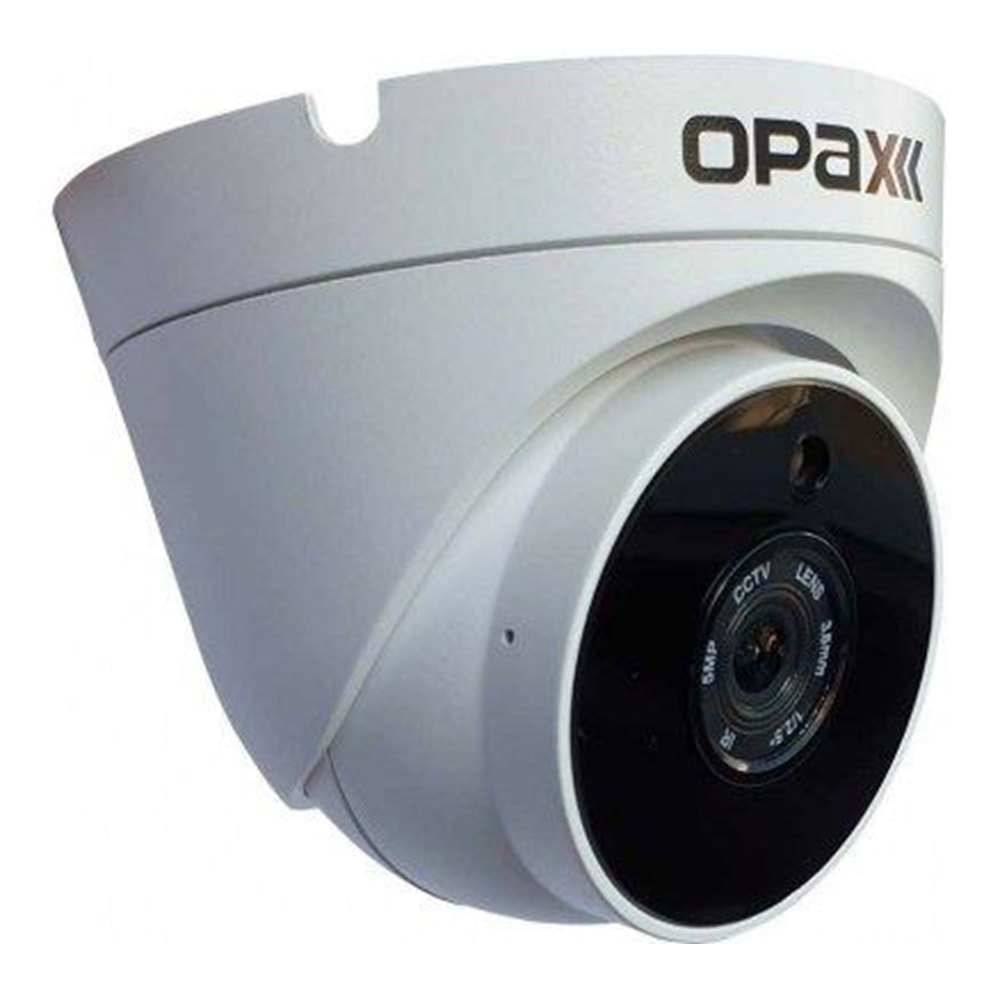

OPAX-2230W 5MP IP SESLİ H.265+ 3WARM LIGHT FULL COLOR P2P 3.6MM METALDOME

(0 Musteri Degerlendirmeleri)

Fiyatları Görmek İçin Üye Olunuz!
Adet:
(20 Adet Mevcut)


Teslimat ve İade Politikasi:
Ürün tarif edildiği gibi değilse iade kabul edilir, alıcı iade nakliye ücreti öder; veya ürünü saklayın ve satıcı ile geri ödeme kabul edin. Detaylı İncele

Paylaş:

OPAX-2230W 5MP IP SESLİ H.265+ 3WARM LIGHT FULL COLOR P2P 3.6MM METALDOME

  • 1/2.9'' 5MP S03 sensor; MStar337DE+4230 16:9 widescreen display
  • Support H264, H.265,H.265+
  • Support dual stream. Main stream : 2880X16620 (15FPS) ,2560X1440 (30 Fps) ,2304x1296 (30fps) ,1920×1080(30fps) ; Sub-stream: D1(704*576)/ 360P(640*360 )/ CIF(352*288), VGA,480X360,( H264, H.265,H.265+)
  • Support WDR, 3D-NR, 2D- NR, BLC, HLC, Forced anti-ficker , Day Shutter mode, Night Shutter Mode, image mode ( superstarlıght mode,Defogging (smart)Auto-White balance for different environments
  • Support ONVIF, can connect with other companys NVR ;
  • ICR switching to surveille 24 hours
  • Support image shutter, 4 Shutter areas can be set ;
  • Support motion detection, motion detection alarm can be sent to email automatically
  • Support OSD setting and network timing
  • Support mobile surveillance(iOS, android),Web and VMS ;
  • Support self-maintenance
  • Support stepless IR, stepless white light mode

MODEL NOOPAX-1979P
BASIC PARAMETER
Image Sensor5 MP 1/2.9" Sensor (SSC30KD)
Chipset(SSC30KD+SC4653)
Effective Pixels5MP
Min. IlluminationColor: 0Lux (Warm light on)
Warm Light3 WARM LIGHT
Lens5MP LENS M12 3.6mm F1.2 fixed lens
Noise Reduction3D digital noise reduction
WDRSupport WDR , >80db
BLCSupport
DEFOGGINGSupport
Forced-Anti FlickerSupport
Horizontal and Vertical
Flip
Support
Day Shutter ModeAuto And Manual (1/10-1/10000 )
Night Shutter ModeAuto And Manual (1/10-1/10000 )
CompressionH.264, H.265, H.265+
Light ModeWarm Light / Infrared and warm Light/ Infrared 3 model support
Light Sensitivity1-100
Led Control Mode Auto and Manual
Led Brightness0- 1000
Light on illumination0,01-1.5 arasında ayarlanabilir
P2PP2P uzaktan NVR olmadan izleme imkanı mevcut olup, Danale programı ile 64 kameraya kadar Kayıt cihazı olmadanda izleyebilirsiniz.
S/N Ratio≥50db(AGC closed)
Image SettingsSupport for brightness, contrast, saturation, white balance, AWB (automatic white balance), AGC (automatic gain), AE (automatic exposure); support privacy area; normal / 90° / 270° image rotation; Automatic, manual color to black and other switches
OSDSupport OSD setting, drag the position freely
Privacy MaskSupport 4 Zone
AUDIO / VIDEO ENCODING
Encoding FormatH.265+ Main Profile Encoding; H.264 Baseline / Main Profile / High Profile Encoding
Image ResolutionMain Stream2880X16620 (15FPS) ,2560X1440 (30 Fps) ,2304x1296 (30fps) ,1920×1080 ,720P
Sub StreamD1(704*576) /VGA, 360P(640*360 ) / CIF(352*288)
Frame rate5MP(15fps 50HZ/60Hz), 4MP(30fps 50HZ/60Hz) FULL 30 FPS
Video Bit Rate32Kbps-3Mbps continuously adjustable, support CBR / VBR
OverlayChannel name, date time, steam info; position is adjustable.
DATA TRANSMISSION & STORAGE
Data StorageVideo, Image
StorageManual, automatic (cycle, timing, alarm switch, motion detection)
Alarm DataFTP, E-mail, Browser, Management software
ProtocolHTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support P6S IP camera, DVR, NVS and etc.)
Access StandardONVIF SDK
Access protocolSupport ONVIF/private protocol/CGI
Client BrowseSupport IE9.0 and above browser, support 4 users concurrent access (MAX)
PORT
NetworkRJ45, 10M/100M network adaptive
WifiNO
AUDIO
SESDAHİLİ SESLİ
POEPOE 'Lİ
Input1CH In
Output1CH oUT
GENERAL
Operation T/H-20°C ~ 65°C / 0% - 90%
WaterproofNO
Power SupplyDC12V 2A
Power Consumption<10W
